Case Study: Tankless Effort

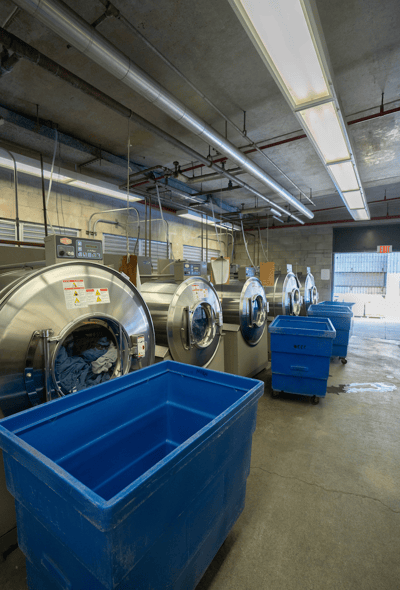

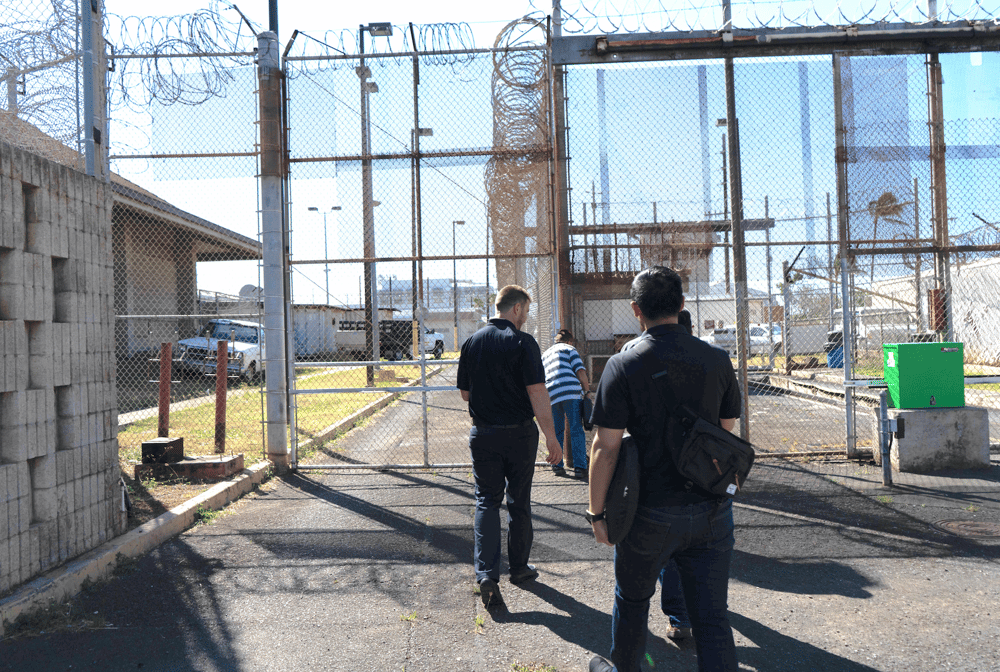

Another application requiring a reliable hot water supply are correctional facilities, which have cooking and laundry operations, as well as inmate hygiene use. Officials at the Oahu Community Correctional Center (OCCC) in suburban Honolulu, realized this firsthand when two 23-year-old 1,000,000 BTU boilers and two 500-gallon storage tanks reached a breaking point, jeopardizing operations.

“The last thing we want is to endanger staff safety because the facility does not have sufficient hot water,” warned Terry Visperas, program specialist with the Hawaii Department of Public Safety. This critical need prompted Visperas to work with facility maintenance staff and the state’s gas utility, Hawaii Gas, on a solution that became more urgent when the center’s second boiler failed.

Public health & safety issue

“From a public health and safety perspective, reliable hot water is an essential component of this facility’s operation,” explained Visperas, who specializes in researching and integrating renewable and emerging technologies for the department. “Bad things happen when necessary systems don’t work as expected.”

Together, representatives from Hawaii Gas and OCCC facility staff devised a plan to replace the two aging boilers with multiple commercial condensing tankless water heaters to provide continuous hot water at the correctional facility.

To prevent a critical failure, the team leveraged the plug-and-play operation of a prefabricated multi-tankless commercial heater system. Shipped as a complete wall- or floor-mounted module, contractors can select from among 36 metal rack-mounted systems that are fully assembled with high efficiency condensing tankless heaters, system controllers and manifolds. Installers need only hours to connect water, gas and build vent runs, rather than days to construct a multi-unit system from scratch.

The initial plan involved installing six gas-fired commercial condensing tankless heaters to improve the resiliency and reliability of the correctional facility’s hot water supply, according to Brian Yee, manager, strategic partnerships and new business development for Hawaii Gas.

“With a Uniform Energy Factor of 0.96 efficiency rating, these 199,900 BTU/hr natural gas tankless units produce an endless supply of hot water using renewable fuel that is—depending on its source—either carbon negative or carbon neutral,” said Yee, who helped the department plan the retrofit project on behalf of the utility.

Tankless brings redundancy, efficiency & cost savings

Yee worked closely with OCCC maintenance supervisors, to plan the 12-week project that would be implemented in three stages to accommodate the 24/7 secure operation. Because the existing boilers and hot water storage tanks were failing, the first and second phases were expedited to avoid catastrophic failure.

Originally designed for 628 detainees, the OCCC facility was rebuilt and expanded more than 40 years ago to accommodate 954 detainees awaiting trial and inmates with short sentences. During the summer of 2018, the facility had a population of more than 1,222 offenders, roughly 28 percent beyond the center’s capacity.

In addition to more users requiring hot water, most inmates shower at the same time, generating a huge surge in demand. “The existing boilers were installed in 1996 and designed to service a much smaller population than we have today,” said OCCC Maintenance Supervisor Ray Gonzalez. “Inmates housed furthest from the boilers were most likely to be forced to take cold showers.”

The first phase of the retrofit project—with six condensing tankless units—would provide potable hot water to one-third of the center’s housing modules, which accommodate roughly 400 inmates. Once complete, the second phase of the project would provide hot water to the remaining 800 inmates, by adding two prefabricated water heater banks (12 units) to replace the failing boilers and storage tanks.

The last phase would provide 12 more tankless units to recharge an existing 500-gallon storage tank that serviced the center’s laundry and kitchen operation. This option ensured unlimited hot water supplies by increasing system redundancy by a factor of 15.

PROJECT: Oahu Community Correctional Center	EXISTING: 23-year-old 1,000,000 BTU boilers and two storage tanks	NEW: 18 NCC199CDV gas-fired commercial condensing tankless heaters	% Change
BTU Input	2M	3.6M	+80%
Storage	1,000 gal.	N/A
Uniform Energy Factor	.62	.96	+34%
GPM Recovery	35.4	100.7	+184%
Total BTUh Recovery	2.48M	3.59M	+45%
Operational Redundancy	2x	15x	+13x
Turn Down Radio	4:1	198:1
Installation	Aerial crane	Skid-mounted / Hand dolly

The tankless advantage

All of the tankless units at the Oahu Community Correctional Center have a maximum flow rate of 11.1 gallons per minute and gas consumption from 18,000 to 199,900 BTU/hour. The heaters offer an 11:1 Turn Down Ratio and 0.96 UEF Uniform Energy Factor, the newest measure of water heater overall efficiency. The stronger UEF would boost efficiency 34 percent above the previous heaters. The higher Turn Down Ratio offered additional heating levels; so where the existing boiler could only operate at 500,000 or 1,000,000 BTUs, the new tankless units could incrementally raise output across 11 heating levels to better meet demand. The higher the UEF value, the more efficiently a unit converts energy into heat.

“Gas is a critical fuel for Hawaii’s resiliency in emergencies and severe weather events, and we have made preparations statewide to keep our customers supplied with natural gas,” said Jeannine Souki, director, government affairs and Corporate communications for Hawaii Gas. “In fact, we haven’t lost service delivery to our customers since the Pearl Harbor Attack in 1941.”

The team then outlined their plan with contractor Mason Hasegawa who estimates he installs tankless heaters twice as frequently as conventional storage tank-type heaters.

“Using tankless heaters for this project was two or three times less expensive and about 100 times easier than adding a new replacement boiler and storage tank,” said the 47-year plumbing-industry veteran. “A new boiler would take weeks to install, cost more to operate, and still offer only 0.70-0.87 UEF; compared with a 0.96 UEF rate provided by the tankless solution.”

The move to tankless also improved the facility’s potential hot water output, with a 184 percent increase in GPM Recovery rates.

Both Hasegawa and Gonzalez were pleased with the team’s decision to install multiple tankless units, as this approach will offer a level of operational redundancy that was not previously possible.

“You see a lot of commercial and institutional applications with one or two boilers feeding storage tanks, whose total storage capacity roughly matches the peak demand of the project,” said Gonzalez. “As a result, if one goes down, the operation doesn’t have enough hot water.”

“A multi-unit tankless job frequently involves three or more units, so each water heater contributes a smaller share of the overall demand,” he said. “If one or even two must be valved-off for maintenance, the remaining units can activate and offset the loss in output, bringing supply much closer to maximum building demand.”

Unit redundancy was very important to ensure sufficient hot water, said Souki, who said that Hawaii Gas supplies the OCCC with renewable natural gas that is blended with locally produced natural gas for the heaters, which can operate on either fuel type.

“From a utility perspective, we want to ensure detainees are provided with their basic human needs, and the folks who work in these facilities have the highest level of safety standards possible,” she said.

Unlike traditional storage water heaters, tankless water heaters use a powerful burner and heat exchanger design to quickly heat incoming water to the set point temperature. They activate only when a fixture is turned on and cease heating once it is off. This ensures energy efficiency because the on-demand heaters are not constantly heating stored water.

Hasegawa installed the first phase of six tankless heaters that were wall-mounted, while phases two and three required a total of four floor-mounted rack units, each configured with six heaters.

The rack units used the same heaters as phase one, but the project team ordered the remaining modules as a fully assembled system, designed to speed installation. The prefabricated Commercial Water Heating System combines commercial-grade tankless units with system controllers, manifolds and other necessary components and accessories into a fully assembled metal rack system.

The system also includes a multi-unit system controller, which stages individual heaters on and off based on hot water demand, as well as rotates their operation to ensure even usage.

The goal of the Commercial Water Heating System is to reduce installation time and expense while maximizing performance and reliability when building multi-unit tankless systems. According to Gonzalez, the rack system brings installation as close to 'plug-and-play" as possible for plumbing contractors.

All three applications have been meeting hot-water demands since the installations.
